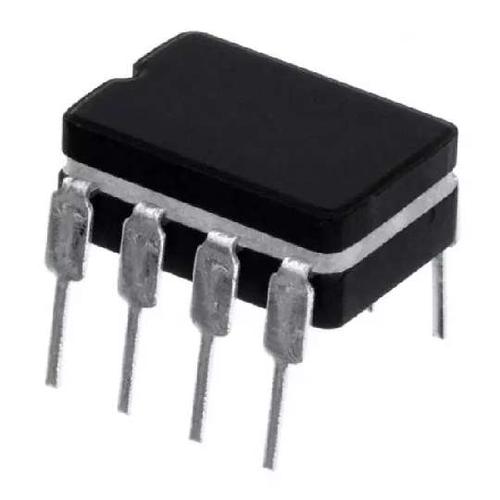

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 1 Circuit 8-CERDIP
LM101AJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | CDIP-8 |
| Output Current | 25.0 mA |
| Supply Current | 1.8 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 1 W |
| Common Mode Rejection Ratio | 80 dB |
| Input Offset Drift | 3.00 µV/K |
| Slew Rate | 500 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 700 µV |
| Input Bias Current | 30 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 1000 mW |
| Minimum CMRR Range | 80 dB |
| Supply Voltage (Max) | 44 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Width | 7.87 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
