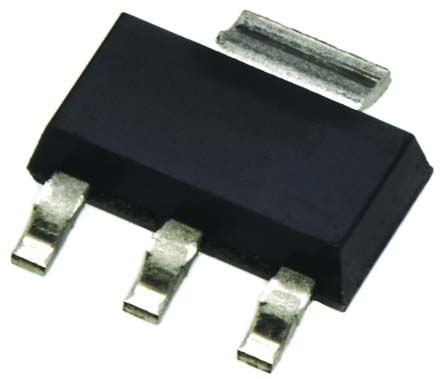

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BCP69T1G is a PNP bipolar Epitaxial Transistor designed for use in low voltage and high current applications. The device is housed in the package which is designed for medium power surface-mount applications. This package ensures level mounting, resulting in improved thermal conduction and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
Can be soldered using wave or reflow
AECQ101 qualified and PPAP capable
NPN complement is BCP68

Show

BCP69T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223
Voltage Rating (DC)	-20.0 V
Current Rating	-1.00 A
Polarity	PNP, P-Channel
Power Dissipation	1500 mW
Breakdown Voltage (Collector to Emitter)	-25.0 V
Continuous Collector Current	1A
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR), Cut Tape (CT)
RoHS	Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
HK STC License	NLR
