Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 5 Pin |

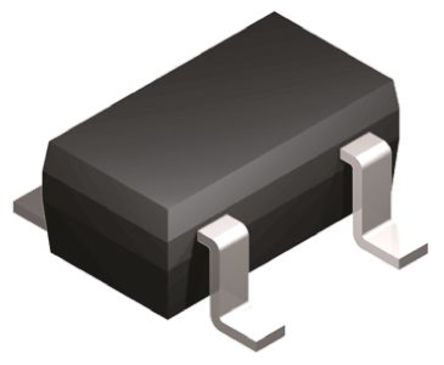

Case/Package | SOT-23-5 |
Supply Voltage (DC) | 2.00V (min) |
Output Current | 20 mA |
Supply Current | 0.7 mA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Number of Positions | 5 Position |
Quiescent Current | 400 µA |
Input Offset Voltage | 5 mV |
Input Bias Current | 250 nA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Supply Voltage | 2V ~ 36V |
Supply Voltage (Max) | 36 V |
Supply Voltage (Min) | 2 V |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.6 mm |
Size-Height | 1.3 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
