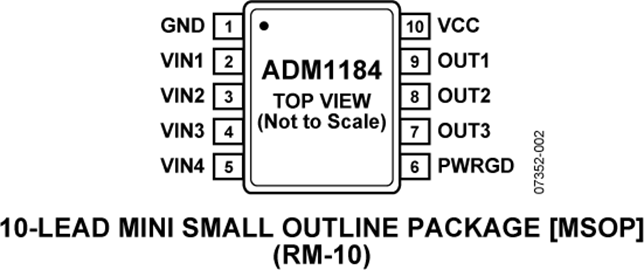

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM1184 series 4-channel integrated Voltage Monitoring Device with 4 open-drain outputs. OUT1 to OUT3 can be used to enable power supplies and PWRGD is a common power-good output indicating that all monitored supplies are above their respective thresholds. OUT1 to OUT3 are dependent on their associated VINx input (that is, VIN1, VIN2 or VIN3). If a supply monitored by VINx drops below its programmed threshold, the associated OUTx pin and PWRGD are disabled. A 2.7 to 5.5V power supply is required on the VCC pin to power the device. Four precision comparators monitor four voltage rails. Each comparator has a 0.6V reference with a worst-case accuracy of 0.8%. Resistor networks that are external to the VIN1, VIN2, VIN3 and VIN4 pins set the trip points for the monitored supply rails. PWRGD is a common power-good output indicating the status of all monitored supplies. There is an internal 190ms (typical) delay associated with the assertion of the PWRGD output.
Monitors 4 supplies via 0.8% accurate comparators
4 Inputs can be programmed to monitor different voltage levels with external resistor dividers
3 Open-drain enable outputs (OUT1, OUT2 and OUT3)
Open-drain power-good output (PWRGD)
Internal 190ms delay associated with assertion of PWRGD

Show

ADM1184ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Supply Voltage (DC)	2.70V (min)
Supply Current	0.08 mA
Number of Positions	10 Position
Threshold Voltage	600 mV
Reset Threshold Voltage (Min)	Adjustable
Reset Threshold Voltage (Max)	Adjustable
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.8 %
Supply Voltage	3.3 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
