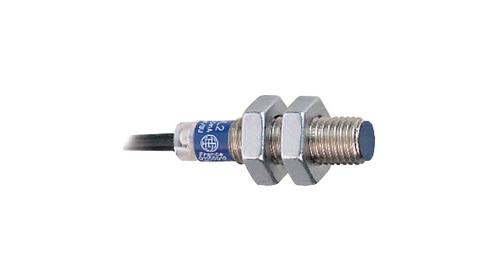

Image is for your reference only,please check specifications for details

XS508B1PAL2 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC64339673
Category:
Proximity Sensor
Datasheet:
Datasheet 3D Model
Description:
Inductive sensor 1.5mm Make contact (NO) Cable 2m 10. . 0.36VDC -25. . .+70℃, XS508B1PAL2, Telemecanique Sensors
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OsiSense XS 508 series 1.5mm diameter 3-wire DC solid-state output plain Inductive Proximity Sensor that is solely for the detection of metal objects. It basically comprises an oscillator whose windings constitute the sensing face. An alternating magnetic field is generated in front of these windings. Composition of an inductive proximity sensor with detection of a metal object. When a metal object is placed within the magnetic field generated by the sensor, the resulting currents induced form an additional load and the oscillations cease. This causes the output driver to operate and, depending on the sensor type, a normally open or normally closed output signal is produced. It enables the detection, without physical contact of metal objects. Telemecanique inductive proximity sensor incorporates an output state LED indicator. The flush mountable sensor using teach mode is fitted with a green LED that indicates power-ON and also assists the user during setting-up (teach mode).
High operating rates
Fast response
Excellent resistance to industrial environments (robust products, fully encapsulated in resin)
No moving parts, therefore service life of sensor not related to number of operating cycles

Show

XS508B1PAL2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Flush
Supply Voltage (DC)	12V ~ 24V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	12VDC ~ 24VDC
	Show
Size-Length	33 mm
Operating Temperature	-25℃ ~ 70℃
Housing Material	Metal
Product Lifecycle Status	Active
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536507000
ECCN Code	EAR99
