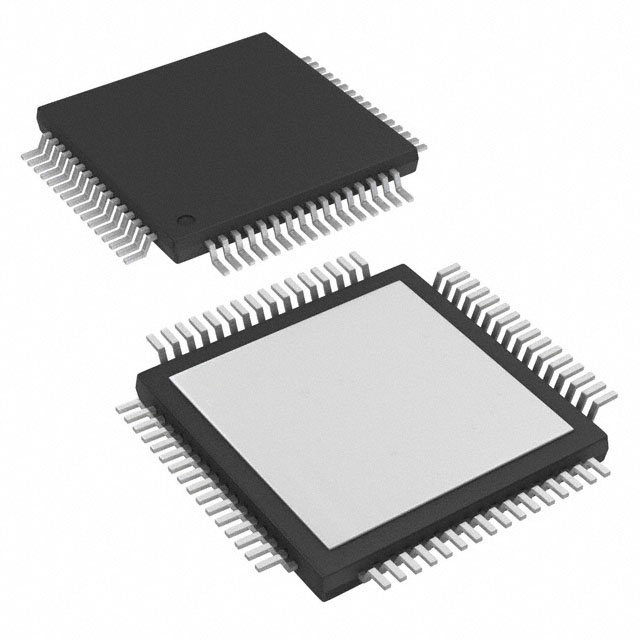

Image is for your reference only,please check specifications for details
- ADS1278MPAPTEP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC86386427
-
Category:Analog to Digital, ADC IC
-
Package:HTQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converters - ADC EP Octal 144kHz Simult Sampling 24B
-
Stock Locations:
-
Availability:258 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 101.17
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Based on the single-channel ADS1271, the ADS1278 (octal) is a 24-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) with data rates up to 128 k samples per second (SPS), allowing simultaneous sampling of eight channels.
- Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large passband droop. As a result, they have limited signal bandwidth and are mostly suited for dc measurements. High-resolution ADCs in audio applications offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The ADS1278 combines these types of converters, allowing high-precision industrial measurement with excellent dc and ac specifications.
- The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. These ADCs provide a usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005 dB of ripple.
- Four operating modes allow for optimization of speed, resolution, and power. All operations are controlled directly by pins; there are no registers to program. The device is fully specified over the military temperature range (55°C to 125°C) and is available in an HTQFP-64 PowerPAD package.
ADS1278MPAPTEP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | HTQFP-64 |
| Number of Circuits | 8 Circuit |
| Number of Channels | 8 Channel |
| Power Dissipation | 530 mW |
| Power Consumption | 530 mW |
| Number of ADCs | 8 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 785 mW |
| Number of Input Channels | 8 Channel |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
