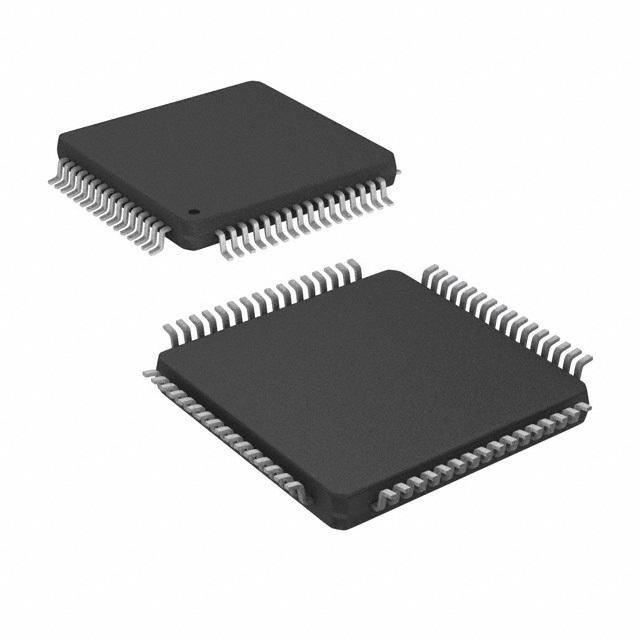

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The ADS131E0x are a family of multichannel, simultaneous sampling, 24- and 16-bit, delta-sigma
(ΔΣ), analog-to-digital converters (ADCs) with a built in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.
The ADS131E0x incorporate features commonly required in industrial power monitoring, control, and protection applications. The ADS131E0x inputs can be independently and directly interfaced with a resistor-divider network or a transformer to measure voltage. The inputs can also be interfaced to a current transformer or Rogowski coil to measure current. With high integration levels and exceptional performance, the ADS131E0x family enables the creation of scalable industrial power systems at significantly reduced size, power, and low overall cost.
FEATURES
• Eight Differential Current and Voltage Inputs
• Outstanding Performance:
– Exceeds Class 0.1 Performance
– Dynamic Range at 1 kSPS: 118 dB
– Crosstalk: –110 dB
– THD: –90 dB at 50 Hz and 60 Hz
• Supply Range:
– Analog:
– +3 V to +5 V (Unipolar)
– ±2.5 V (Bipolar, allows dc coupling)
– Digital: +1.8 V to +3.6 V
• Low Power: 2 mW per Channel
• Data Rates: 1, 2, 4, 8, 16, 32, and 64 kSPS
• Programmable Gains (1, 2, 4, 8, and 12)
• Fault Detection and Device Testing Capability
• SPI™ Data Interface and Four GPIOs
• Package: TQFP-64 (PAG)
• Operating Temperature Range: –40°C to +105°C

Show

ADS131E06IPAGR Specifications
