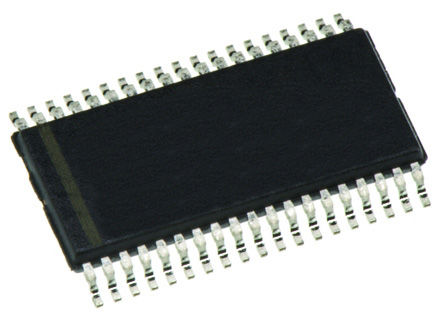

ADS7953SBDBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC11103436
Category:
Analog to Digital, ADC IC
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
12Bit, 1MSPS, 16Channel, Single-Ended, microPower SAR ADC with Serial I/F 38-TSSOP -40℃ to 125℃
Stock Locations:
Availability:
214 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS7953SBDBT is a 8-bit multichannel Analog-to-digital Converter (ADC) includes a capacitor based SAR A/D converter with inherent sample and hold. The device accepts a wide analog supply range from 2.7 to 5.25V. Very low power consumption makes these devices suitable for battery-powered and isolated power supply applications. A wide 1.7 to 5.25V I/O supply range facilitates glue-less interfaces with the most commonly used CMOS digital hosts. The serial interface is controlled by CS and SCLK for easy connection with microprocessors and DSP. The input signal is sampled with the falling edge of CS. It uses SCLK for conversion, serial data output and reading serial data in. The devices allow auto sequencing of preselected channels or manual selection of a channel for the next conversion cycle. There are two software selectable input ranges, four individually configurable GPIOs and two programmable alarm thresholds per channel.
Zero latency
Auto and manual modes for channel selection
2-programmable alarm levels per channel
Power-down current
Input bandwidth
Green product and no Sb/Br

Show

ADS7953SBDBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Supply Voltage (DC)	2.70V (min)
Supply Current	2.3 mA
Number of Circuits	1 Circuit
Number of Channels	16 Channel
Number of Positions	38 Position
Number of Bits	12 Bit
Power Dissipation	14.5 mW
Sample Rate	1 Msps
Power Consumption	11.5 mW
Number of ADCs	1 ADC
Number of Inputs	16 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	16 Channel
Supply Voltage	2.7V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.5V, 5V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
