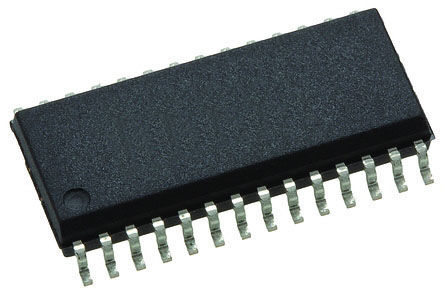

Image is for your reference only,please check specifications for details
- ADS8507IBDW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC39249306
-
Category:Analog to Digital, ADC IC
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter 16Bit 40KSPS Analog-to-Digital Converter w/Internal Reference and Parallel/Serial Interface Single Channel Single ADC SAR 40KSPS 16Bit Parallel/Serial 28Pin SOIC Tube
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.6
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The ADS8507 is a complete low power, single 5-V supply, 16-bit sampling analog-to-digital (A/D)
- converter. It contains a complete 16-bit capacitor-based, successive approximation register (SAR) A/D converter with sample and hold, clock, reference, and data interface. The converter can be
- configured for a variety of input ranges including ±10 V, 4 V, and 5 V. For most input ranges, the input voltage can swing to 25 V or –25 V without damage to the converter.
- FEATURES
- • 40-kHz Min Sampling Rate
- • 4-V, 5-V, and ±10-V Input Ranges
- • 89.9-dB SINAD with 10-kHz Input
- • ±1.5 LSB Max INL
- • +1.5/–1 LSB Max DNL, 16-Bit No Missing
- Codes
- • ±5-mV BPZ, ±0.4 PPM/°C BPZ Drift
- • SPI Compatible Serial Output With
- Daisy-Chain (TAG) Feature
- • Single 5-V Analog Supply
- • Pin-Compatible With ADS7807 and 12-Bit
- ADS7806/8506
- • Uses Internal or External 2.5-V Reference
- • Low Power Dissipation
- – 24 mW Typ, 30 mW Max at 40 KSPS
- • 50-µW Max Power Down Mode
- • 28-Pin SO Package
- • Full Parallel Interface
- • 2"s Comp or BTC Output Code
ADS8507IBDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 4.20 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 24 mW |
| Sample Rate | 40 ksps |
| Power Consumption | 155 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 30 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 18 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
