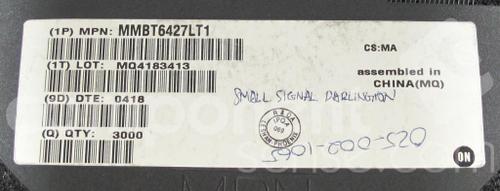

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This NPN Bipolar Darlington Transistor is designed for use in switching applications, such as print hammer, relay, solenoid and lamp drivers. The device is housed in the SOT-23 package, which is designed for lower power surface mount applications.
Features
---
|
Pb-Free Package is Available
S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

Show

MMBT6427LT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23-3
Voltage Rating (DC)	40.0 V
Current Rating	500 mA
Polarity	NPN
Power Dissipation	225 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.5A
hFE Min	20000 @100mA, 5V
Input Power (Max)	225 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.94 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
