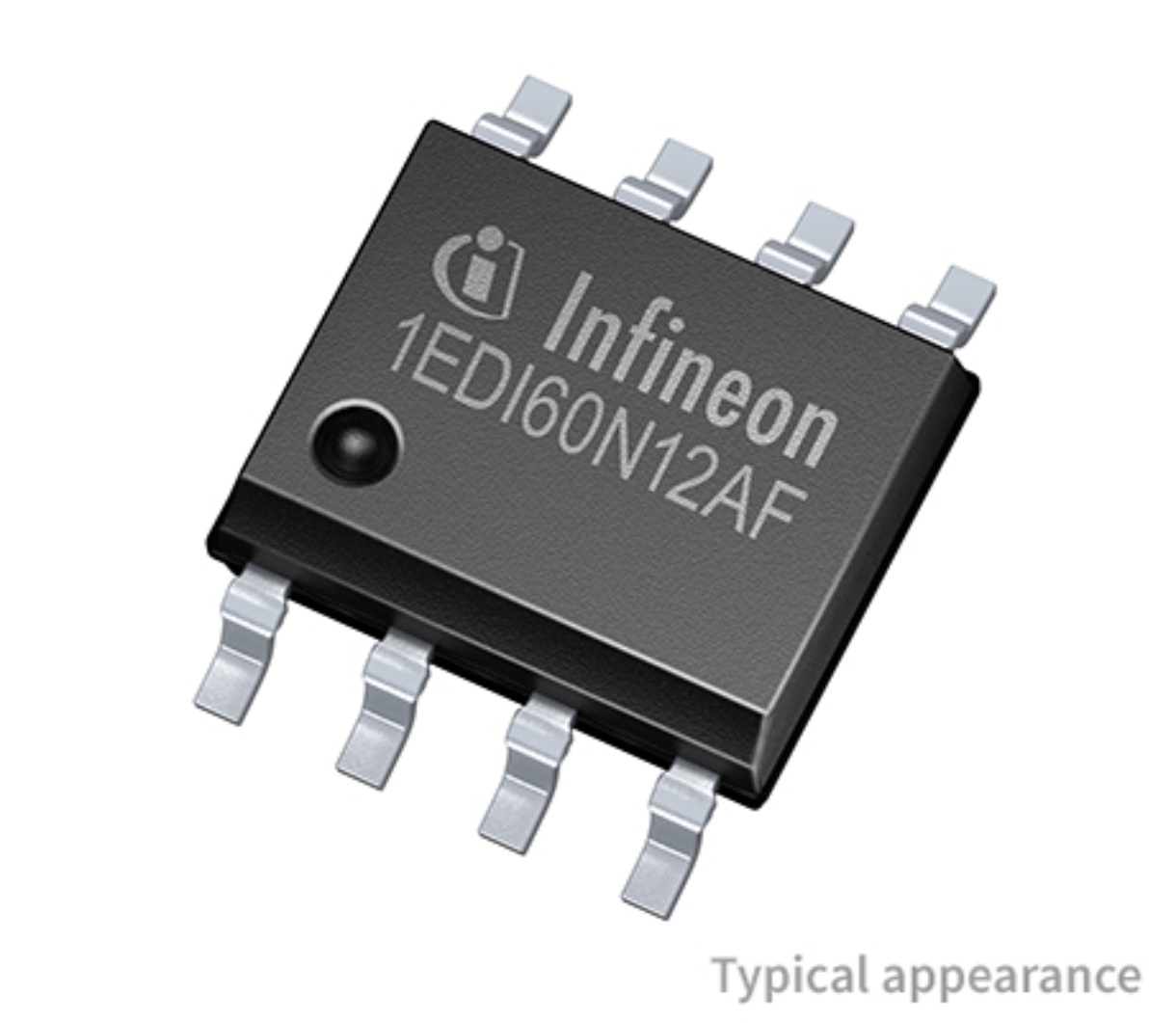

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Separate source/sink output (Vsupply: 35V)
- Iout: 6A @ 15V
- 1200V Coreless Transformer IC with galvanic isolation
- Prop. delay <105ns with 40ns input filter time
- High CMTI robustness >100kV/µs
- Separate source/sink output
- Small package DSO-8 150mil
- Benefits:
- Tailored for all 650V CoolMOS™ C7, P6 and other super junction MOS transistors
- High switching frequency applications as SMPS, up to 4MHz
- Tune turn-off vs. turn-on
- High reliability @ small footprint
1EDI60N12AF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-DSO-8 |
| Number of Outputs | 1 Output |
| Fall Time (Max) | 30 ns |
| Fall Time (Max) | 30 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 400 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
