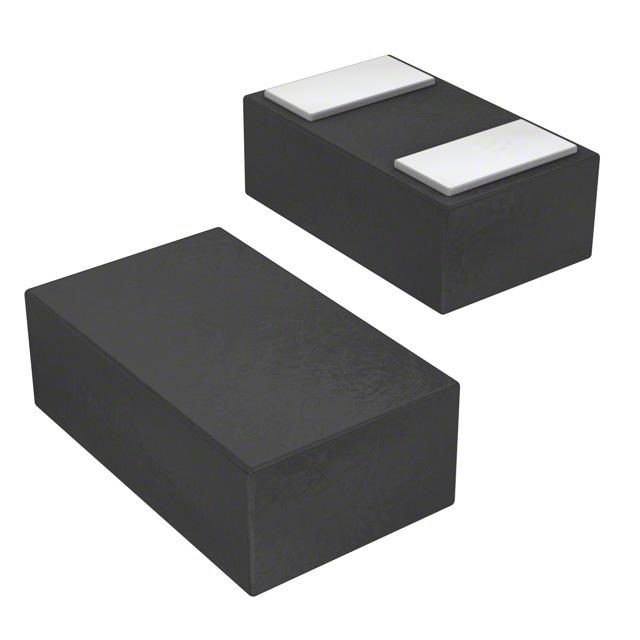

Image is for your reference only,please check specifications for details

TPD1E01B04DPLR - TI
Manufacturer:
TI
ManyChip's Part#:
MC33187096
Category:
Diode
Package:
XFDFN-2
Datasheet:
Datasheet 3D Model
Description:
1Channel ESD Protection Diode for USB Type-C and Thunderbolt 3 2-X2SON -40℃ to 125℃
Stock Locations:
Availability:
1,305 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.
The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages.

Show

TPD1E01B04DPLR Specifications
