Description

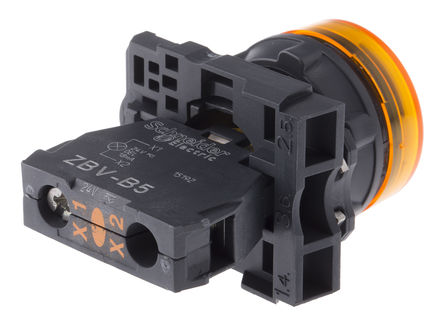

The XB5AVB5 from Schneider Electric is a Harmony XB5 orange colour complete pilot light plain lens with integral LED. It has round shape signalling unit head. The device also has IP66 degree of protection conforming to IEC 60529, IK05 degree of protection conforming to IEC 50102, NEMA 4X and NEMA 13 degree of protection. It complies with CSA C22-2 number 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520 and UL 508 standards.
Rated supply voltage from 24VAC/DC, 50Hz/60Hz
Screw clamp terminal connections
Mounting diameter of 22mm
Plastic bezel material and plastic fixing collar material
Dimension is 42mm x 30mm x 54mm (H x W x D)
Rated insulation voltage of 250V conforming to EN 60947-1
Rated impulse withstand voltage of 4KV conforming to EN 60947-1
Current consumption of 18mA
Service life of 100000h at rated voltage and 25°C
Ambient air temperature for operation from -25°C to 70°C

Show

XB5AVB5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Operating Voltage	24 V
Voltage Rating	24 V
	Show
Size-Length	54 mm
Size-Width	30 mm
Size-Height	41.5 mm
Color	Yellow
Housing Material	Plastic
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
