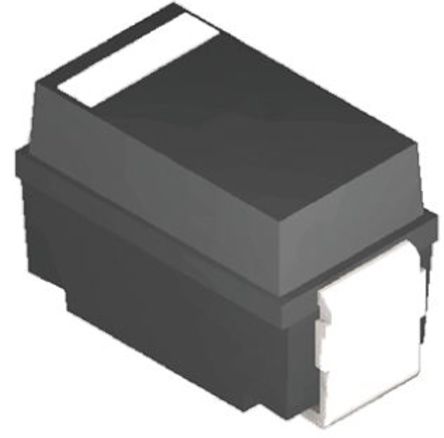

RGF1M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC44419223
Category:
TVS Diode
Package:
DO-214AC
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR RGF1M Standard Power Diode, 1kV, 1A, Single, 1.3V, 500ns, 30A
Stock Locations:
Availability:
10,203 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RGF1M is a surface-mount glass-passivated junction Fast Recovery Rectifier offers low forward voltage drop and high surge current capability.
Colour band denotes cathode end polarity
High current capability
Easy pick and place

Show

RGF1M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	1.00 kV
Current Rating	1.00 A
Capacitance	8.50 pF
Output Current	≤1.00 A
Forward Voltage	1.3 V
Polarity	Standard
Power Dissipation	1.76 W
Thermal Resistance	28℃/W (RθJL)
Reverse recovery time	500 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	4.75 mm
Size-Width	2.95 mm
Size-Height	2.2 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
