Description

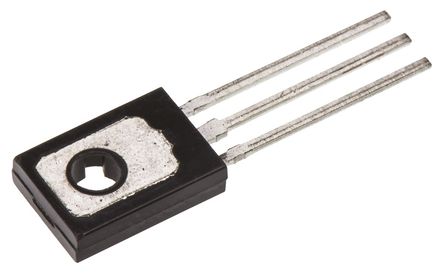

The BD237 is a NPN low voltage Power Transistor manufactured in Planar technology with "Base Island" layout. The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage.
Low saturation voltage
PNP type is BD238

Show

BD237 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	3 MHz
Voltage Rating (DC)	100 V
Current Rating	2.00 A
Power Rating	25 W
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	25 W
Gain Bandwidth Product	3 MHz
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	25 @1A, 2V
Input Power (Max)	25 W
DC Current Gain (hFE)	40
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	25000 mW
	Show
Size-Length	7.8 mm
Size-Width	2.7 mm
Size-Height	10.8 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
