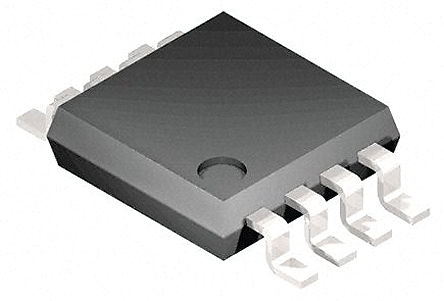

Image is for your reference only,please check specifications for details

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC412AMS8GE is a passive Double-balanced Mixer which operate between 9.0 and 15GHz. The HMC412AMS8G(E) operate with LO drive levels between +9 and +13dBm and provides 8dB conversion loss across the entire specified frequency band. This mixer requires no external components or bias.
8.4dB Conversion loss
8.4dB Noise figure
44dB LO to RF isolation
40dBm LO to IF isolation
30dBm RF to IF isolation
19dBm Input third-order intercept (IP3)
11dBm Input power for 1dB compression (P1dB)
No external components

Show

HMC412AMS8GE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	9GHz ~ 15GHz
Power Dissipation	280 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	290 mW
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
