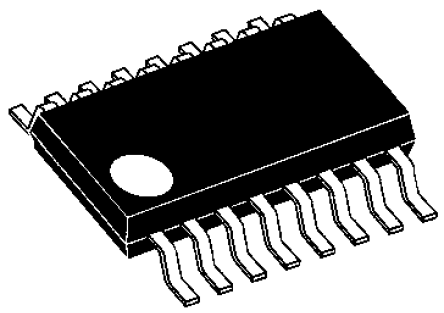

Image is for your reference only,please check specifications for details

ADT7411ARQZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC137344
Category:
Temperature Sensor
Package:
QSOP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADT7411ARQZ Temperature Sensor IC, Digital, ± 0.5℃, -40℃, +120℃, QSOP, 16Pins
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADT7411ARQZ is a combination of 10-bit Temperature-to-Digital Converter and a 10-bit 8-channel ADC. This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The input voltage on the ADC channels has a range of 0 to 2.25V and the input bandwidth is DC. The reference for the ADC channels is derived internally. The ADT7411 provides two serial interface options: a 4-wire serial interface compatible with SPI, QSPI, MICROWIRE and DSP interface standards and a 2-wire SMBus/I2C interface. It features a standby mode that is controlled via the serial interface. The ADT7411"s wide supply voltage range, low supply current and SPI-/I2C-compatible interface.
DC input bandwidth
<10µA Power-down current
Internal 2.25VREF option
Double-buffered input logic
SMBus packet error checking (PEC) compatible

Show

ADT7411ARQZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QSOP-16
Supply Voltage (DC)	2.70V (min)
Output Voltage	2.40 V
Output Current	1.00 mA
Supply Current	3 mA
Number of Positions	16 Position
Number of Bits	10 Bit
Power Dissipation	10 mW
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	120 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	10 mW
Accuracy	±3 ℃
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	5 mm
Size-Width	3.91 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 120℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
