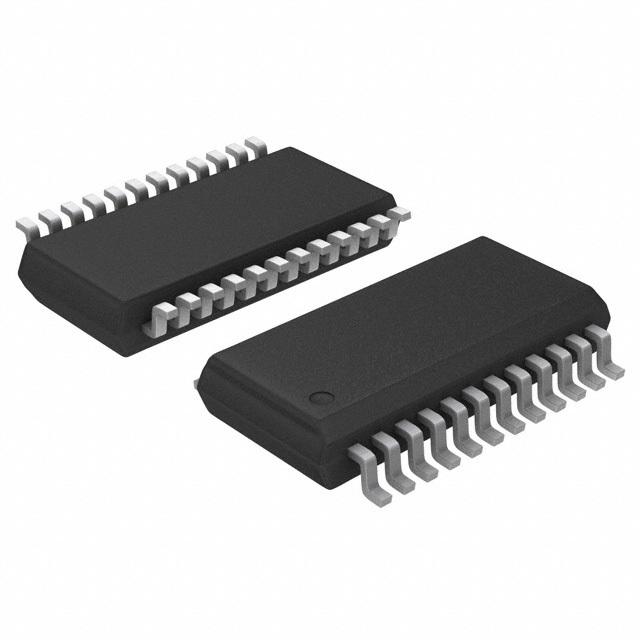

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The ADT7463 dBCOOL controller is a complete systems monitor and multiple PWM fan controller for noise-sensitive
applications requiring active system cooling. It can monitor 12 V, 5 V, and 2.5 V CPU supply voltages, plus its own supply
voltage. It can monitor the temperature of up to two remote sensor diodes, plus its own internal temperature.
FEATURES
Monitors up to 5 Supply Voltages
Controls and Monitors up to 4 Fan Speeds
1 On-Chip and 2 Remote Temperature Sensors
Monitors up to 6 Processor VID Bits
Dynamic TMIN Control Mode Optimizes System Acoustics Intelligently
Automatic Fan Speed Control Mode Controls System Cooling Based on Measured Temperature
Enhanced Acoustic Mode Dramatically Reduces User Perception of Changing Fan Speeds
Thermal Protection Feature via THERM Output
Monitors Performance Impact of Intel®Pentium®4 Processor Thermal Control Circuit via THERM Input
2-Wire and 3-Wire Fan Speed Measurement
Limit Comparison of All Monitored Values
Meets SMBus 2.0 Electrical Specifications (Fully SMBus 1.1 Compliant)
APPLICATIONS
Low Acoustic Noise PCs
Networking and Telecommunications Equipment

Show

ADT7463ARQZ Specifications
