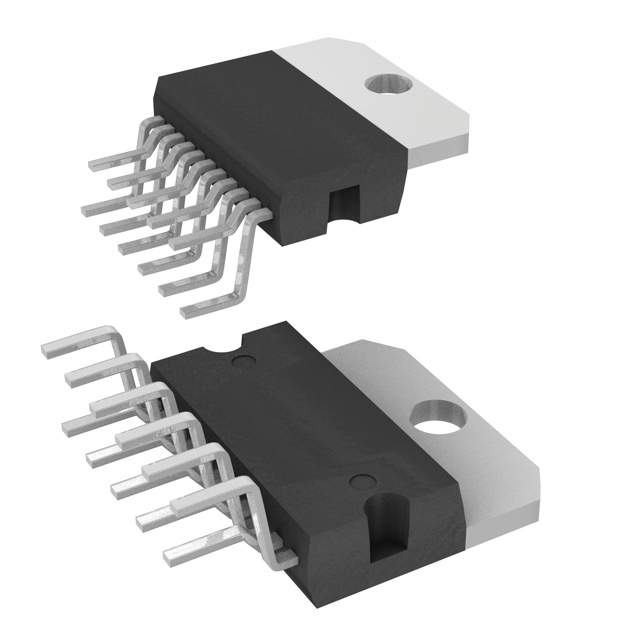

Image is for your reference only,please check specifications for details

STA7360 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC209882486
Category:
Audio Amplifier IC
Package:
Multiwatt-11
Datasheet:
Datasheet 3D Model
Description:
Audio Amp Speaker 1CH Mono/2CH Stereo 20W Class-AB 11Pin(11+Tab) MULTIWATT V Tube
Stock Locations:
Availability:
664 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STA7360 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	Multiwatt-11
Supply Voltage (DC)	22.0 V
Output Current	5000 mA
Supply Current	5.00 A
Number of Channels	2 Channel
Power Dissipation	36000 mW
Output Power	20 W
Gain	20 dB
Output Current (Max)	5000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	40 ℃
Power Dissipation (Max)	36000 mW
Supply Voltage	8V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	8 V
	Show
Size-Length	19.6 mm
Size-Width	5 mm
Size-Height	10.7 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
