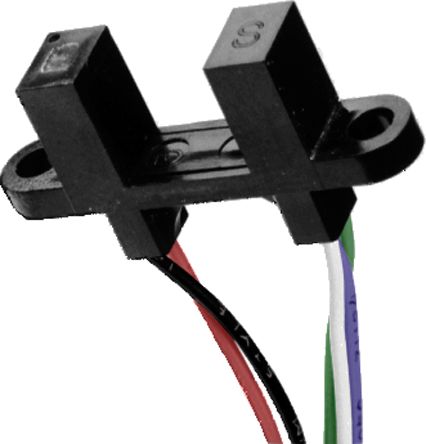

Image is for your reference only,please check specifications for details

OPB900W55Z - TT Electronics/Optek Technology
Manufacturer:
TT Electronics/Optek Technology
ManyChip's Part#:
MC18717030
Category:
Photoelectric Sensor
Package:
Pre-Wired
Datasheet:
Datasheet 3D Model
Description:
Sensor; Slotted Optical Switch; 9.5mm Slot; 2V Emitter; 890nm; 300mW
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**OPB900 to OPB913 Photologic Series Slotted Optical Switches**
The OPB900 to OPB913 series, from Optek Technology, are a family of Photologic® slotted optical switches. These integrated circuit switches offer a standard housing with added flexibility for design engineers. This includes choice of type and polarity of the TTL output and shell material. The L series of slotted optical switches are PCB mounted whilst the W series come with 26 AWG wires. Suitable applications for the OPB900 to OPB913 series include; mechanical switch replacements, speed indication, mechanical limit indication, edge sensing and object sensing.

Show

OPB900W55Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	5 Pin
Case/Package	Pre-Wired
Voltage Rating (DC)	10.0 V
Output Voltage	35.0 V
Supply Current	15 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Forward Voltage	1.7 V
Wavelength	890 nm
Input Current	20.0 mA
Power Dissipation	300 mW
Rise Time	70 ns
Forward Current	40 mA
Reverse Breakdown Voltage	2 V
Forward Current (Max)	40 mA
Fall Time	70 ns
Fall Time (Max)	70 ns
Fall Time (Max)	70 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Supply Voltage	4.75V ~ 5.25V
	Show
Size-Length	30.99 mm
Size-Width	6.35 mm
Size-Height	10.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
