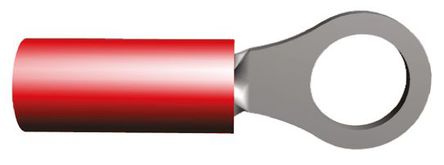

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

320552 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Wire Gauge	16AWG ~ 22AWG
Contact Plating	Tin
Voltage Rating (DC)	300 V
Orientation	Straight
Flammability Rating	UL 94 V-2
Termination Style	Ring Lug, Ring
Operating Temperature (Max)	105 ℃
Voltage Rating (Max)	300 VAC
Voltage Rating	300 V
	Show
Size-Length	20.24 mm
Size-Width	7.14 mm
Size-Thickness	0.79 mm
Color	Red
Contact Material	Copper
Material	Copper
Insulation Material	Nylon
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
