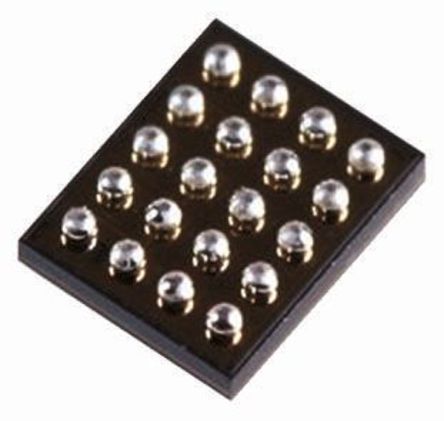

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The FAN54010 family (FAN5401X) combines a highly integrated switch-mode charger, to minimize single-cell Lithium ion (Li-ion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery.
- The charging parameters and operating modes are programmable through an I2C Interface that operates up to 3.4Mbps. The charger and boost regulator circuits switch at 3MHz to minimize the size of external passive components.
FAN54015UCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | WLCSP-20 |
| Output Current | 550 mA |
| Output Voltage (Max) | 4.4 V |
| Output Voltage (Min) | 3.5 V |
| Output Current (Max) | 1.45 A |
| Output Current (Min) | 550 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Show | |
| Size-Length | 1.96 mm |
| Size-Width | 1.87 mm |
| Size-Height | 0.378 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
