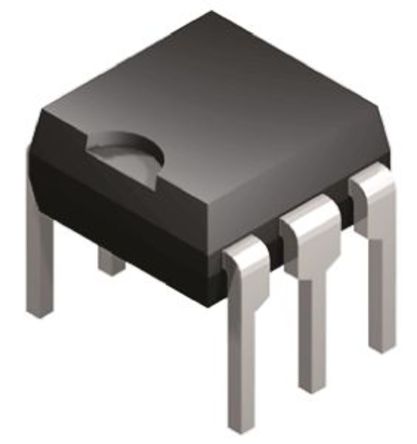

- 4N29M - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC83086433
-
Category:Optocoupler, Optoisolator
-
Package:DIP-6
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler DC-IN 1CH Darlington With Base DC-OUT 6Pin PDIP White Bulk
-
Stock Locations:
-
Availability:1,793 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.4
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The 4N29M, 4N30M, 4N32M, 4N33M, H11B1M and TIL113M have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
- Features
- ■ High sensitivity to low input drive current
- ■ Meets or exceeds all JEDEC Registered Specifications
- ■ UL, C-UL approved, File #E90700, Volume 2
- ■ IEC 60747-5-2 approved (ordering option V)
- Applications
- ■ Low power logic circuits
- ■ Telecommunications equipment
- ■ Portable electronics
- ■ Solid state relays
- ■ Interfacing coupling systems of different potentials and impedances
4N29M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.2 V |
| Power Dissipation | 0.25 W |
| Rise Time | 5 µs |
| Isolation Voltage | 4170 Vrms |
| Forward Current | 80 mA |
| Output Voltage (Max) | 30 V |
| Input Current (Min) | 3 A |
| Reverse Breakdown Voltage | 3 V |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 80 mA |
| Fall Time | 40 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Size-Height | 3.53 mm |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
