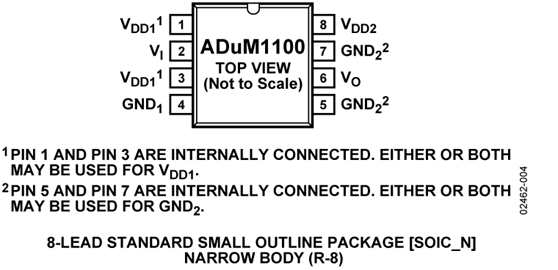

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The ADuM1100 is a digital isolator based on Analog Devices Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocoupler devices.
- FEATURES
- High data rate: dc to 100 Mbps (NRZ)
- Compatible with 3.3 V and 5.0 V operation/level translation
- 125°C maximum operating temperature
- Low power operation
- 5 V operation
- 1.0 mA maximum @ 1 Mbps
- 4.5 mA maximum @ 25 Mbps
- 16.8 mA maximum @ 100 Mbps
- 3.3 V operation
- 0.4 mA maximum @ 1 Mbps
- 3.5 mA maximum @ 25 Mbps
- 7.1 mA maximum @ 50 Mbps
- 8-lead SOIC_N package (RoHS compliant version available)
- High common-mode transient immunity: >25 kV/μs
- Safety and regulatory approvals
- UL recognized
- 2500 V rms for 1 minute per UL 1577
- CSA Component Acceptance Notice #5A
- VDE Certificate of Conformity
- DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
- VIORM = 560 V peak
- APPLICATIONS
- Digital field bus isolation
- Opto-isolator replacement
- Computer peripheral interface
- Microprocessor system interface
- General instrumentation and data acquisition applications
ADUM1100AR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.00 V |
| Operating Voltage | 3V ~ 5.5V |
| Rise/Fall Time | 3 ns |
| Output Current | ≤20.0 mA |
| Number of Channels | 1 Channel |
| Power Dissipation | 240 mW |
| Data Rate | 25.0 Mbps |
| Isolation Voltage | 2500 Vrms |
| Fall Time (Max) | 3 ns |
| Fall Time (Max) | 3 ns |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 240 mW |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
| HK STC License | NLR |
