- ADUM1100ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC250812
-
Category:Interface Isolator, Digital Isolator
-

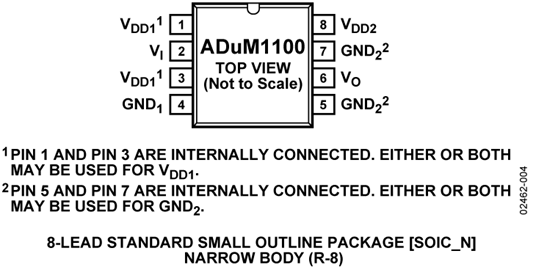

Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Digital Isolator, 1Channel, 18ns, 3V, 5.5V, SOIC, 8Pins
-
Stock Locations:
-
Availability:58 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.49
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADUM1100ARZ is a Digital Isolator based on iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, this isolation component provides outstanding performance characteristics superior to alternatives, such as optocoupler devices. Configured as a pin-compatible replacement for existing high speed optocouplers, the ADuM1100 supports data rates as high as 25Mbps and 100Mbps. The ADuM1100 operates with a voltage supply ranging from 3.0 to 5.5V, boasts a propagation delay of <18ns and edge asymmetry of <2ns and is compatible with temperatures up to 125°C. It operates at very low power, less than 0.9mA of quiescent current (sum of both sides) and a dynamic current of less than 160µA per Mbps of data rate. Unlike other optocoupler alternatives, the ADuM1100 provides DC correctness with a patented refresh feature that continuously updates the output signal.
- High data rate
- Compatible with 3.3 and 5.0V operation/level translation
- Low power operation
- High common-mode transient immunity (>25kV/µs)
- ESD sensitive device, take proper precaution while handling the device.
ADUM1100ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.00 V |
| Rise/Fall Time | 3 ns |
| Output Current | ≤20.0 mA |
| Supply Current | 2.20 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 240 mW |
| Data Rate | 25.0 Mbps |
| Rise Time | 3 ns |
| Isolation Voltage | 2500 Vrms |
| Input Current (Min) | 10 μA |
| Maximum Forward Voltage (Max) | 5 V |
| Fall Time (Max) | 3 ns |
| Fall Time (Max) | 3 ns |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 240 mW |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
