HEF4043BT NXP Semiconductors - - ManyChip Electronics

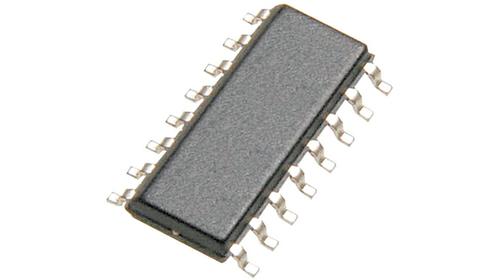

Image is for your reference only,please check specifications for details

HEF4043BT - NXP Semiconductors
Manufacturer:
NXP Semiconductors
ManyChip's Part#:
MC211863793
Package:
SOP
Datasheet:
Datasheet 3D Model
Description:
СЕРИЯ 4000/14000/40000, Р-Л КАТУШКА С ВЫХОДАМИ ТРЕЙГЕРАЦИИ НАВЫШЕГО УРОВНЯ, ПРАВЫЙ ВЫХОД, PDSO16, 3,9 ММ, ПЛАСТИК, MS-012, SOT109-1, SOP-16
Stock Locations:
Availability:
487 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 01/11/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Общее описание
HEF4043B — это четырёхканальный лatches R/S с выходами 3-состояния и общим входом включения (OE). Каждый лatches имеет активный вход высокого уровня (1S–4S), активный вход низкого уровня (1R–4R) и активный выход 3-состояния высокого уровня (1Q–4Q).
Функции
Полная статическая работа
Параметры для напряжений 5 В, 10 В и 15 В
Стандартизированные симметричные характеристики выходов
Работает в полном промышленном диапазоне температур от −40 °C до +85 °C
Соответствует стандарту JEDEC JESD 13-B
Защита от ЭСПД:
HBM JESD22-A114E превышает 2000 В
MM JESD22-A115-A превышает 200 В
