ADUM4190TRIZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC236544
Category:
Isolation Amplifier IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADUM4190TRIZ Isolation Amplifier, High Stability Error, 1 Amplifier, 5kV, 3V to 20V, SOIC, 16Pins
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

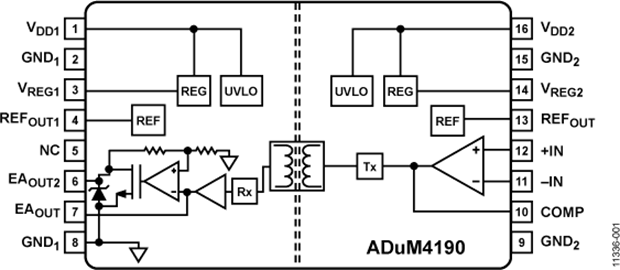

The ADUM4190TRIZ is a High Stability Isolated Error Amplifier based on iCoupler® technology. It is ideal for linear feedback power supplies. The primary side controllers enable improvements in transient response, power density and stability as compared to commonly used optocoupler and shunt regulator solutions. Unlike optocoupler-based solutions, which have an uncertain current transfer ratio over lifetime and at high temperatures, the ADUM4190 transfer function does not change over its lifetime and it is stable over a wide temperature range of -40 to +125°C. Included in the ADUM4190 is a wideband operational amplifier for a variety of commonly used power supply loop compensation techniques. The ADUM190 is fast enough to allow a feedback loop to react to fast transient conditions and over-current conditions. Also included is a high accuracy 1.225V reference to compare with the supply output setpoint.
Stability in isolated feedback applications
0.5% Initial accuracy
1% Accuracy over the full temperature range
Compatible with type II or type III compensation networks
1.225V Reference voltage
Compatible with DOSA
Low power operation (<7mA total)
ESD sensitive device, take proper precaution while handling the device.

Show

ADUM4190TRIZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Current	2.90 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	2.78 W
Common Mode Rejection Ratio	72 dB
Bandwidth	400 kHz
Gain Bandwidth Product	10 MHz
Isolation Voltage	5 kV
Fall Time (Max)	1000000 ns
Fall Time (Max)	1000000 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	400 kHz
Supply Voltage	3V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	3 V
	Show
Size-Length	12.85 mm
Size-Width	7.6 mm
Size-Height	2.44 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
