ADUM4223ARWZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC361596
Category:
Interface Isolator, Digital Isolator
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADUM4223ARWZ Digital Isolator, 2Channel, 38ns, 3V, 5.5V, SOIC, 16Pins
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADUM4223 series isolated precision Half-bridge Driver employs the Analog Devices, Inc., iCoupler® technology to provide independent and isolated high-side and low-side outputs. The ADuM3223 provides 3000Vrms isolation in the narrow body. Combining high speed CMOS and monolithic transformer technology, this isolation component provides outstanding performance characteristics superior to the alternatives, such as the combination of pulse transformers and gate drivers. It provides two independent isolated channels. It operates with an input supply ranging from 3 to 5.5V, providing compatibility with lower voltage systems. In comparison to gate drivers employing high voltage level translation methodologies. It offers the benefit of true, galvanic isolation between the input and each output. Each output may be continuously operated up to 537V peak relative to the input, thereby supporting low-side switching to negative voltages.
4A Peak output current
1MHz Maximum high frequency operation
54ns Maximum isolator and driver propagation delay
5ns Maximum channel-to-channel matching
CMOS input logic levels
>25kV/µs High common-mode transient immunity
Thermal shutdown protection
Default low output

Show

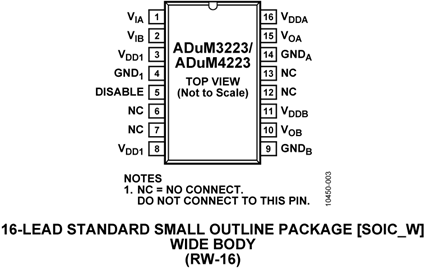

ADUM4223ARWZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.00V (min)
Rise/Fall Time	12 ns
Number of Outputs	2 Output
Output Current	2.3 mA
Supply Current	1.4 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	2.77 W
Isolation Voltage	5000 Vrms
Fall Time (Max)	22 ns
Fall Time (Max)	22 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
