- ADV7125KSTZ140 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC84413
-
Category:Digital to Analog, DAC IC
-
Package:LQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter, 8Bit, 330MSPS, Parallel, 3V to 3.6V, 4.75V to 5.25V, QFP, 48Pins
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.93
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

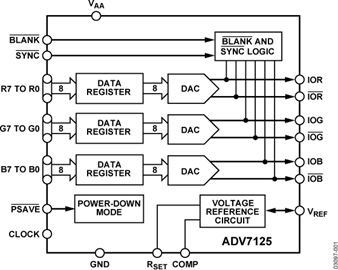

- The ADV7125KSTZ140 is a triple 8-bit high speed Digital-to-analog Converter (DAC) on a single monolithic chip. It consists of three high speed, a standard TTL input interface and a high impedance, analog output current source. The ADV7125 has three separate 8-bit-wide input ports. A single 5/3.3V power supply and clock are all that are required to make the device functional. The ADV7125 has additional video control signals, composite SYNC and BLANK, as well as a power save mode. The ADV7125 is fabricated in a 5V CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation.
- RS-343A-/RS-170-compatible output
- Complementary outputs
- TTL-compatible inputs
- Internal reference
ADV7125KSTZ140 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Outputs | 3 Output |
| Supply Current | 67.0 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 8 Bit |
| Power Dissipation | 30(Min)mW |
| Sample Rate | 140 Msps |
| Resolution (Bits) | 8.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 3 DAC |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
