ADV7127KRUZ50 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC261858
Category:
Digital to Analog, DAC IC
Package:
TSSOP-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADV7127KRUZ50 Digital to Analogue Converter, 10Bit, 240MSPS, Parallel, 3V to 3.6V, 4.75V to 5.25V, TSSOP
Stock Locations:
Availability:
237 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

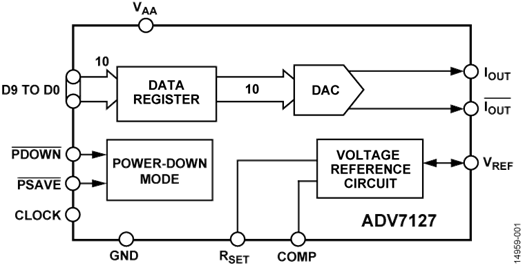

The ADV7127KRUZ50 is a high speed Digital-to-analog Converter on a single monolithic chip. It consists of a 10-bit video D/A converter with on-board voltage reference, complementary outputs, a standard TTL input interface and high impedance analog output current sources. The ADV7127 has a 10-bit wide input port. A single 5/3.3V power supply and clock are all that are required to make the part functional. The ADV7127 is fabricated in a CMOS process. Its monolithic CMOS construction ensures greater functionality with lower power dissipation.
RS-343A/RS-170 Compatible output
Complementary outputs
TTL Compatible inputs
Low power dissipation
Low power standby mode
Power-down mode

Show

ADV7127KRUZ50 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Supply Voltage (DC)	5.00V (max)
Number of Outputs	1 Output
Supply Current	33.0 mA
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	10 Bit
Power Dissipation	30(Min)mW
Sample Rate	240 Msps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
