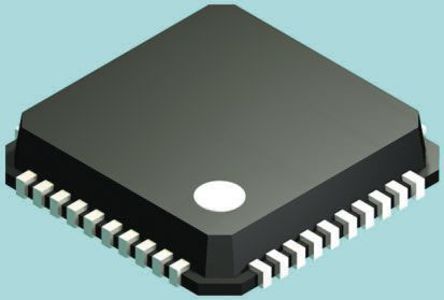

ADV7180BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC85758
Category:
CODEC
Package:
LFCSP-40
Datasheet:
Datasheet 3D Model
Description:
Video Decoder IC, Analogue, 10Bit, 57.27MSPS Sample Rate, 6Channels, 1.71V to 1.89V, LFCSP-40
Stock Locations:
Availability:
1,107 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADV7180 series 10-bit 4x Oversampling SDTV Video Decoder which automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL and SECAM standards into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard. External HS, VS and FIELD signals provide timing references for LCD controllers and other video ASICs, if required. Three analog video input channels accept standard composite, S-Video or component video signals, supporting a wide range of consumer video sources. AGC and clamp-restore circuitry allow an input video signal peak-to-peak range to 1.0V. The line-locked clock output allows the output data rate, timing signals and output clock signals to be synchronous, asynchronous or line locked even with ±5% line length variation. Mini-TBC functionality provided by adaptive digital line length tracking, signal processing and enhanced FIFO management.
3 Video input channels with on-chip antialiasing filter
CVBS (composite), Y/C (S-Video) and YPrPb (component) video input support
5-line Adaptive comb filters and CTI/DNR video enhancement
Integrated AGC with adaptive peak white mode
Macrovision copy protection detection
NTSC/PAL/SECAM Autodetection
8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS, VS and FIELD
1V Analog input signal range
Full-featured VBI data slicer with teletext support (WST)
Power-down mode and ultralow sleep mode current
2-wire Serial MPU interface (I²C compatible)

Show

ADV7180BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	LFCSP-40
Supply Voltage (DC)	1.71 V, 1.89 V (max)
Supply Current	77 mA
Number of Channels	3 Channel
Number of Positions	40 Position
Number of Bits	10 Bit
Power Dissipation	0.440 mW
Sample Rate	57.3 MHz
Resolution (Bits)	10.0 Bit
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	0.440 mW
Number of Input Channels	6 Channel
Supply Voltage (Max)	1.89 V
Supply Voltage (Min)	1.71 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
