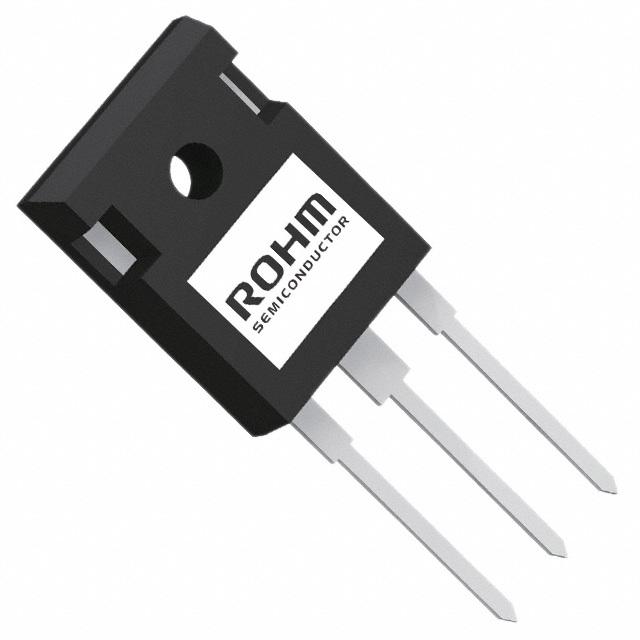

Image is for your reference only,please check specifications for details

SCS230AE2C - ROHM Semiconductor
Manufacturer:
ROHM Semiconductor
ManyChip's Part#:
MC53019742
Category:
Schottky Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Silicon Carbide Schottky Diode, 650V Series, Dual Common Cathode, 650V, 30A, 23NC, TO-247
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SCS230AE2C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.55 V
Power Dissipation	230 W
Forward Current	30 A
Max Forward Surge Current (Ifsm)	200 A
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	230000 mW
	Show
Size-Height	21.34 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
