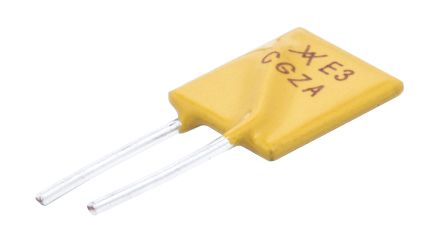

Image is for your reference only,please check specifications for details
- AHEF300 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC107737193
-
Category:Fuse
-
Package:Radial
-
Datasheet:Datasheet 3D Model
-
Description:Переключной PTC-течевой предохранитель 3А (режим удержания), 6А (режим отказа), 32 ВDC, 100 А, 3.2 Вт, срок службы 5 секунд, сопротивление проводников 0.035 Ом, тип конструкции – радиальный, размеры: 10.2 х 3.8 х 15.5 мм.
-
Stock Locations:
-
Availability:2,063 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.61
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Полимерный переключной PTC-течевой предохранитель 32 В, 3 А, режим удержания; тип конструкции – радиальный, с отверстием для установки; размеры: диск.
AHEF300 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Radial |
| Time to Trip | 5 s |
| Power Dissipation | 3.2 W |
| Holding Current | 3 A |
| Trip Current | 6 A |
| Holding Current (Max) | 3 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 32 VDC |
| Show | |
| Size-Height | 15.5 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
