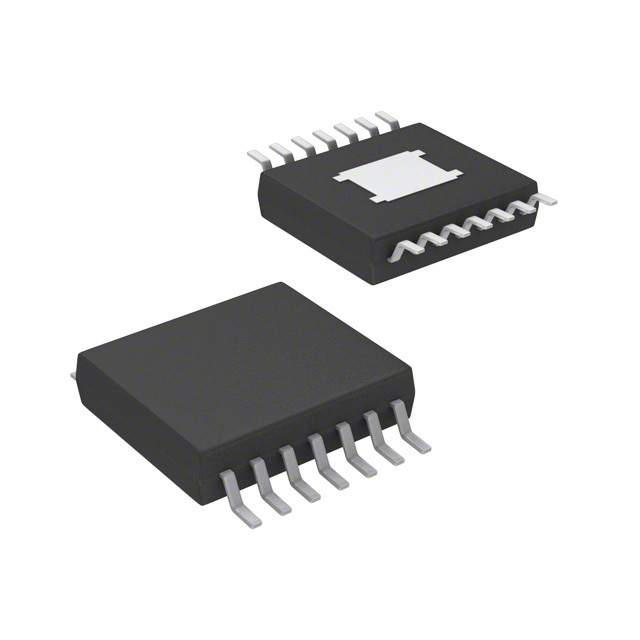

ALM2402QPWPRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC4260426
Category:
Operational Amplifier, OP Amp IC
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ALM2402QPWPRQ1 Operational Amplifier, 4 Amplifier, 600kHz, 0.17V/µs, 4.5V to 16V, HTSSOP, 14Pins
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.1

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ALM2402QPWPRQ1 is a dual high voltage/ high current output Operational Amplifier with protection features that is optimal for driving low impedances or high ESR capacitive loads. It operates with single or split power supplies from 5.0 to 16V and can output up to 400mA DC. Each op-amp includes over-temperature flag/shut-down. It also includes separate supply pins for each output stage that allow the user to apply a lower voltage on the output to limit the Voh and henceforth the on-chip power dissipation.
Op-amp with discrete power boost buffer replacement
Wide supply range for both supplies (up to 16V)
Over temperature shutdown
Current limit
Shutdown pin for low Iq applications
Stable with large capacitive loads (up to 3µF)
Zero crossover distortion
Internal RF/EMI filter
1mV Typical low offset voltage
400mA/channel Continuous high output current drive

Show

ALM2402QPWPRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Output Current	≤400 mA
Supply Current	5 mA
Number of Circuits	2 Circuit
Number of Positions	14 Position
Common Mode Rejection Ratio	45 dB
Input Offset Drift	9.00 µV/K
Bandwidth	600 kHz
Slew Rate	170 mV/μs
Gain Bandwidth Product	0.6 MHz
Input Offset Voltage	1 mV
Input Bias Current	0.0015μA @5V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	45 dB
Supply Voltage	4.5V ~ 16V
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
