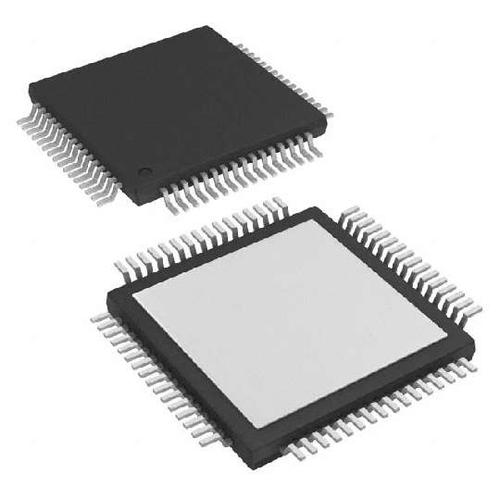

Image is for your reference only,please check specifications for details
- TUSB4041IPAPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4789676
-
Category:USB Chip, USB Interface IC
-
Package:HTQFP-64
-
Datasheet:Datasheet 3D Model
-
Description:USB Interface, USB Hub Controller, USB 2.0, 3mV, 3.6V, HTQFP, 64Pins
-
Stock Locations:
-
Availability:319 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 32.21
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TUSB4041IPAPR is a four-port USB 2.0 hub provides USB high-speed or full-speed connections on the upstream port. It provides USB high-speed, full-speed or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed, full-speed and low-speed connections, the USB high-speed, full-speed and low-speed connectivity is enabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed or low-speed connections, the USB high-speed connectivity are disabled on the downstream ports. It supports per-port or ganged power switching and overcurrent protection. An individually port-power-controlled hub switches power on or off to each downstream port as requested by the USB host. Also when an individually port-power-controlled hub senses an overcurrent event, only power to the affected downstream port is switched off.
- Four asynchronous endpoint buffers per transaction translator
- Supports USB battery charging
- OTP ROM, serial EEPROM or I²C and SMBus slave interface for custom configurations
- Provides 128-bit universally unique identifier (UUID)
- Supports on-board and in-system OTP and EEPROM programming through the USB 2.0 upstream port
- Single clock input, 24MHz crystal or oscillator
- DM/DP Polarity swap
- Type C compatible
- No special driver requirements - works seamlessly on any operating system with USB stack support
- Per port or ganged power switching and overcurrent notification inputs
- Green product and no Sb/Br
- Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TUSB4041IPAPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 64 Pin |
| Case/Package | HTQFP-64 |
| Supply Voltage (DC) | 1.10 V, 3.30 V |
| Number of Positions | 64 Position |
| Data Rate | 480 Mbps |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.1V, 3.3V |
| Supply Voltage (Max) | 3.6 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
