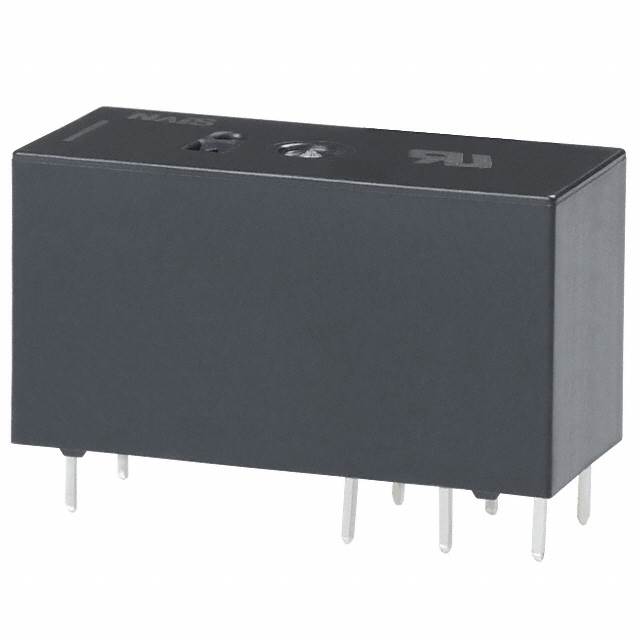

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole
ALZ11F24 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (AC) | 440 V |
| Insulation Resistance | 1000 MΩ |
| Contacts Type | SPDT |
| Contact Current Rating | 16 A |
| Coil Voltage | 24 VDC |
| Coil Current | 16.7 mA |
| Coil Resistance | 1.44 kΩ |
| Current Rating (Max) | 16 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 400 mW |
| Input Power (Max) | 4 KVA |
| Switching Current (Max) | 16 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 28.8 mm |
| Size-Width | 15.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490075 |
| ECCN Code | EAR99 |
