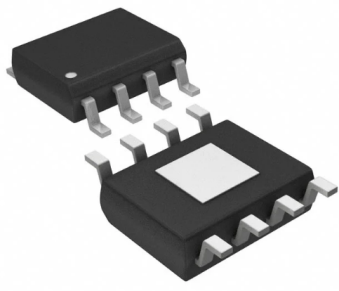

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The AO4406AL uses advanced trench technology to provide excellent RDS(ON)with low gate charge. This device is suitable for high side switch in SMPS and general purpose applications.
Features
VDS(V) = 30V
ID= 12A (VGS= 10V)
RDS(ON)< 11.5mΩ (VGS= 10V)
RDS(ON) < 15.5mΩ (VGS= 4.5V)

Show

AO4406AL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	SOIC-8
Polarity	N-CH
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	13A
Input Capacitance (Ciss)	910pF @15V(Vds)
Input Power (Max)	3.1 W
	Show
Product Lifecycle Status	Obsolete
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
