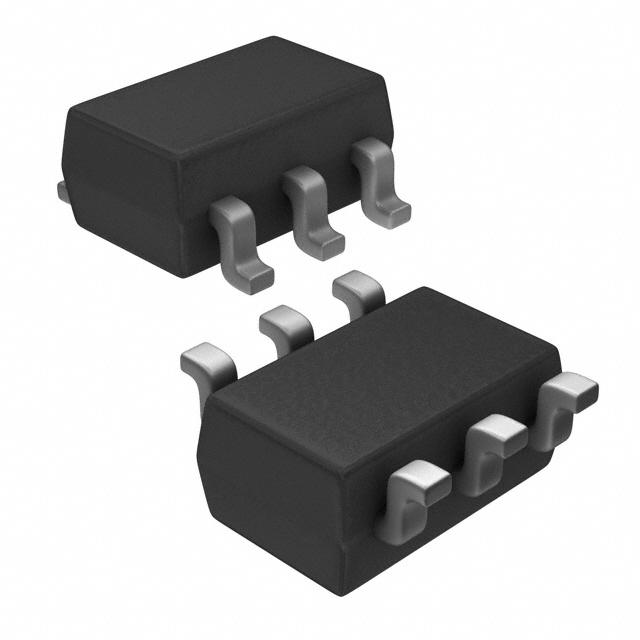

Image is for your reference only,please check specifications for details

Updated at 29/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AO6802 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOP-457
Power Rating	0.73 W
Polarity	N-CH
Power Dissipation	1.15 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	3.5A
Rise Time	1.5 ns
Input Capacitance (Ciss)	210pF @15V(Vds)
Input Power (Max)	1.15 W
Fall Time	15.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.15 W
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
