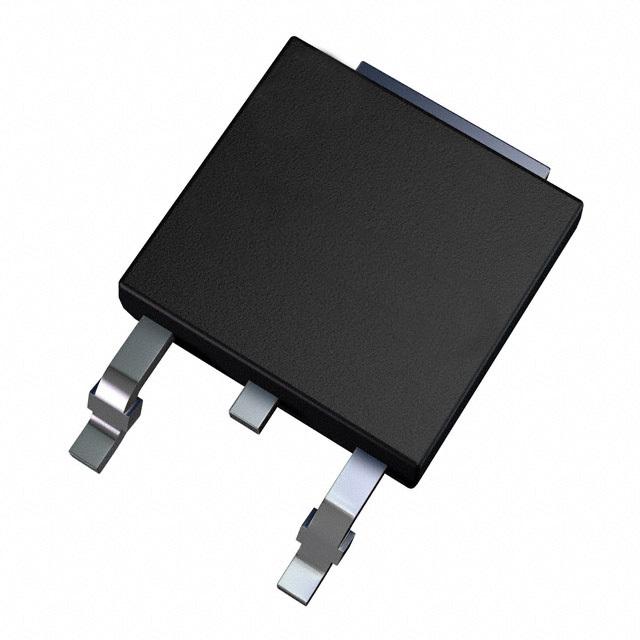

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The AOD7N65 & AOI7N65 have been fabricated using an advanced high voltage MOSFET process that is designed to deliver high levels of performance and robustness in popular AC-DC applications.
By providing low RDS(on), Ciss and Crss along with guaranteed avalanche capability these parts can be adopted quickly into new and existing offline powersupply designs.
Product Summary
VDS 750V@150℃
ID(at VGS=10V) 7A
RDS(ON)(at VGS =10V) < 1.56Ω

Show

AOD7N65 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	178 W
Drain to Source Voltage (Vds)	650 V
Continuous Drain Current (Ids)	7A
Rise Time	43 ns
Input Capacitance (Ciss)	1180pF @25V(Vds)
Input Power (Max)	178 W
Fall Time	32 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
Power Dissipation (Max)	178W (Tc)
	Show
Operating Temperature	-50℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
