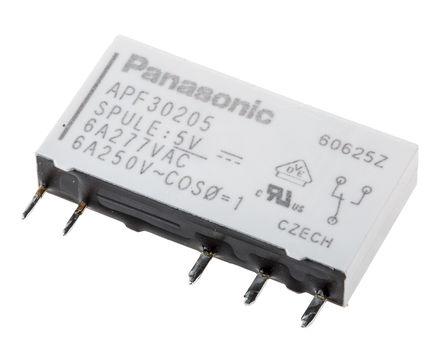

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The APF series 1a/1c 6A Slim Power Relay has high density mounting with 5mm width. The controller protection against surges and noise with a breakdown voltage of 4000Vrms for 1 minute between contacts and coil and 6000V surge breakdown voltage between contacts and coil. It also offers creepage distance between contact and 8mm minimum coil terminal, clearance distance between contact and 6mm minimum coil terminal.
- High switching capacity
- Satisfies reinforced insulation standard
- Sealed construction allows automatic washing
- Complies with all safety standards
- High insulation resistance
APF30205 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Voltage Rating (AC) | 250 V |
| Contacts Type | SPDT |
| Contact Current Rating | 6 A |
| Coil Voltage | 5 VDC |
| Coil Current | 34 mA |
| Coil Resistance | 147 Ω |
| Current Rating (Max) | 6 A |
| Coil Voltage (DC) | 5 V |
| Coil Power | 170 mW |
| Input Power (Max) | 1.5 KVA |
| Switching Current (Max) | 6 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 28 mm |
| Size-Width | 5 mm |
| Size-Height | 15 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
