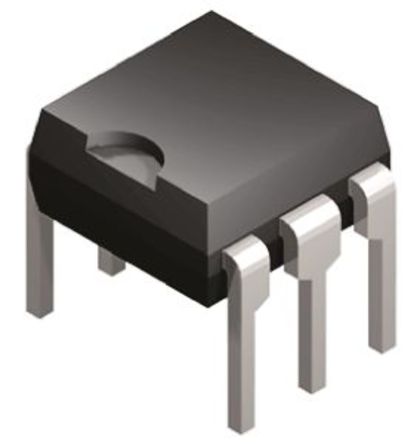

4N26M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12322096
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 4N26M Optocoupler, Transistor Output, 1Channel, DIP, 6Pins, 60mA, 7.5kV, 20%
Stock Locations:
Availability:
9,911 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 4N26M is a 6-Pin general purpose Phototransistor Optocoupler consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor. It is suitable for digital logic inputs and microprocessor inputs.
850V Maximum working insulation voltage
6000V High allowable overvoltage
-40 to +100°C Operating temperature range
20% Minimum current transfer ratio at IF=10mA, VCE=10V

Show

4N26M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Input Voltage (DC)	1.18 V
Output Voltage	30 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.18 V
Input Current	10.0 mA
Power Dissipation	250 mW
Rise Time	2 µs
Isolation Voltage	7.5 kV
Forward Current	60 mA
Output Voltage (Max)	30 V
Input Current (Min)	3 A
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Fall Time	2 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	8.89 mm
Size-Width	6.6 mm
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
