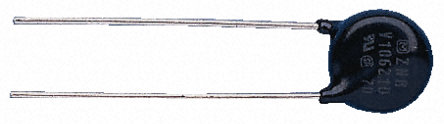

Image is for your reference only,please check specifications for details

ERZV05D820 - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC71474960
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
PANASONIC ELECTRONIC COMPONENTS ERZV05D820 TVS Varistor, 50V, 65V, ZNR V Series, 145V, Disc 5mm, High Surge Current
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

ERZV05D820 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	65 V
Voltage Rating (AC)	50 V
Capacitance	460 pF
Power Rating	100 mW
Clamping Voltage	145 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	65 V
Voltage Rating (AC Max)	50 V
	Show
Size-Width	4.1 mm
Size-Height	10 mm
Size-Thickness	4.1 mm
Material	Zinc Oxide
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
