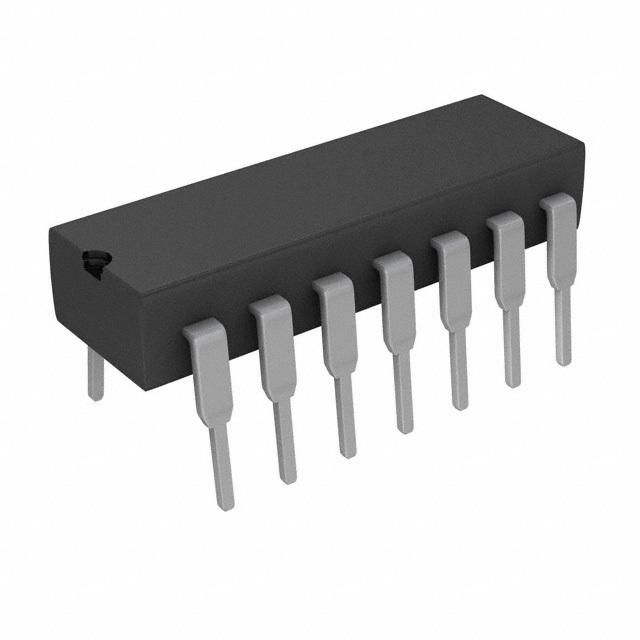

LM224AN - TI
Manufacturer:
TI
ManyChip's Part#:
MC6492064
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM224AN Operational Amplifier, 4 Amplifier, 1.2MHz, 0.5V/µs, 3V to 30V, DIP, 14Pins
Stock Locations:
Availability:
212 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.55

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM224AN is a 4 independent high-gain frequency-compensated Operational Amplifier designed specifically to operate from a single supply or split supply over a wide range of voltages.
Internal frequency compensation
Common-mode input voltage range includes ground, allowing direct sensing near ground
Low input bias and offset parameters
2kV ESD Protection
0.8mA Typical low supply-current drain independent of supply voltage
2mV Typical input offset voltage
2nA Typical input offset current
15nA Typical input bias current
32V Differential input voltage range equal to maximum-rated supply voltage
100V/mV Typical open-loop differential voltage amplification
Green product and no Sb/Br

Show

LM224AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Output Current	30mA @15V
Supply Current	1.4 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	70 dB
Input Offset Drift	7.00 µV/K
Bandwidth	1.2 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.2 MHz
Input Offset Voltage	3 mV
Input Bias Current	20 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Gain Bandwidth	1.2 MHz
Minimum CMRR Range	70 dB
Supply Voltage	3V ~ 30V
Supply Voltage (Max)	32V ~ 36V
	Show
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
