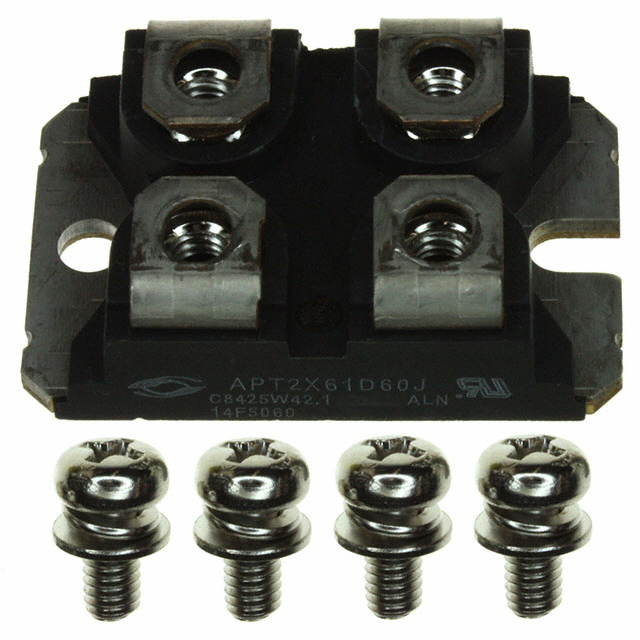

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PRODUCT FEATURES
- • Ultrafast Recovery Times
- • Soft Recovery Characteristics
- • Popular SOT-227 Package
- • Low Forward Voltage
- • High Blocking Voltage
- • Low Leakage Current
- PRODUCT APPLICATIONS
- • Anti-Parallel Diode
- -Switchmode Power Supply
- -Inverters
- • Free Wheeling Diode
- -Motor Controllers
- -Converters
- • Snubber Diode
- • Uninterruptible Power Supply (UPS)
- • Induction Heating
- • High Speed Rectifiers
- PRODUCT BENEFITS
- • Low Losses
- • Low Noise Switching
- • Cooler Operation
- • Higher Reliability Systems
- • Increased System Power Density
APT2X61D60J Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Number of Pins | 4 Pin |
| Case/Package | SOT-227-4 |
| Voltage Rating (DC) | 600 V |
| Current Rating | 60.0 A |
| Forward Voltage | 1.8 V |
| Reverse recovery time | 130 ns |
| Forward Current | 60 A |
| Maximum Forward Voltage (Max) | 1.8V @60A |
| Forward Current (Max) | 60 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 38.2 mm |
| Size-Width | 25.4 mm |
| Size-Height | 9.6 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
