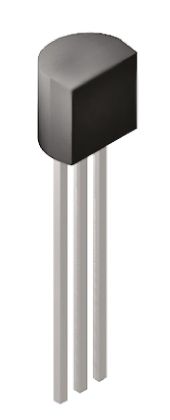

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This bistable switch put 2N6028RLRAG thyristor manufactured from ON Semiconductor will turn on when a current is applied to it. This device has a surge current rating of 5 A. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SCR thyristor has a minimum operating temperature of -50 °C and a maximum of 100 °C. Its repetitive peak forward blocking voltage is 40 V, while its repetitive peak reverse voltage is 40 V.
2N6028RLRAG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Number of Contacts | 3 Contact |
| Voltage Rating (DC) | 40.0 V |
| Current Rating | 150 mA |
| Output Voltage | 11 V |
| Forward Voltage | 1.5 V |
| Power Dissipation | 300 mW |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -50 ℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Size-Length | 5.33 mm |
| Size-Width | 5.2 mm |
| Size-Height | 4.19 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
