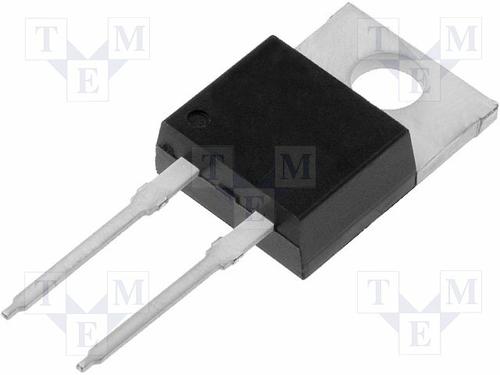

Image is for your reference only,please check specifications for details

STTH806DTI - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1976404
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STTH Series Tandem 600V Hyperfast Boost Diode Through Hole - TO-220-2
Stock Locations:
Availability:
1,546 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.14

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH806DTI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	600 V
Current Rating	8.00 A
Output Current	≤8.00 A
Load Current	8 A
Forward Voltage	3.6V @8A
Polarity	Standard
Thermal Resistance	2.6 ℃/W
Reverse recovery time	30 ns
Forward Current	8000 mA
Max Forward Surge Current (Ifsm)	180 A
Maximum Forward Voltage (Max)	3.6V @8A
Forward Current (Max)	8000 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
