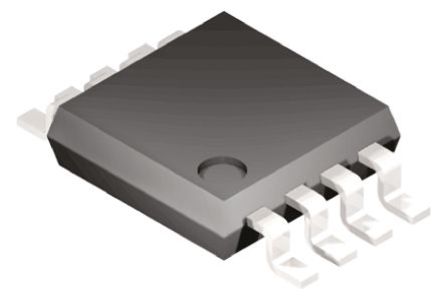

Image is for your reference only,please check specifications for details

AD7684BRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC319865
Category:
Analog to Digital, ADC IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7684BRMZ Analog to Digital Converter, 16Bit, 100KSPS, Single, 2.7V, 5.5V, MSOP
Stock Locations:
Availability:
217 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.15

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7684BRMZ is a 16-bit 100kSPS PulSAR® Differential Analogue to Digital Converter (ADC) that operates from a single power supply between 2.7V and 5.5V. It contains a low power high speed 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock and a serial SPI-compatible interface port. The part also contains a low noise wide bandwidth short aperture delay, track-and-hold circuit. On the CS falling edge, it samples an analogue input, +IN, between 0V to REF with respect to a ground sense, -IN. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput.
16-bit Resolution with no missing codes
Serial interface SPI/QSPI/MICROWIRE/DSP compatible
1nA Standby current
ESD sensitive device, take proper precaution while handling the device.

Show

AD7684BRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Digital Logic Level	SAR
Supply Voltage (DC)	2.70V (min)
Supply Current	800 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Number of Bits	16 Bit
Power Dissipation	4 mW
Data Rate	100 kbps
Sample Rate	100 ksps
Power Consumption	4 mW
Resolution (Bits)	16.0 Bit
Input Capacitance	30.0 pF
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	6 mW
Number of Input Channels	1 Channel
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
