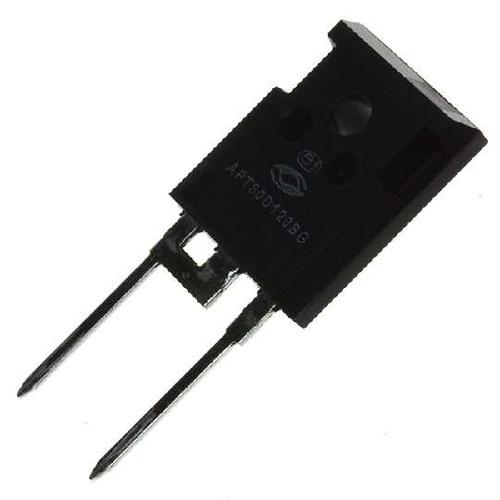

Image is for your reference only,please check specifications for details
- APT60D120BG - Microsemi
-
Manufacturer:Microsemi
-
ManyChip's Part#:MC19472866
-
Category:TVS Diode
-
Package:TO-247-2
-
Datasheet:Datasheet 3D Model
-
Description:Диод выпрямительный, 1 фаза, 1 элемент, 60 А, 1200 В V(RRM), кремниевый, TO-247, соответствует RoHS, TO-247, 2 вывода
-
Stock Locations:
-
Availability:1,020 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.94
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
APT60D120BG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | TO-247-2 |
| Voltage Rating (DC) | 1.20 kV |
| Current Rating | 60.0 A |
| Output Current | ≤60.0 A |
| Forward Voltage | 2.5V @60A |
| Polarity | Standard |
| Thermal Resistance | 0.31℃/W (RθJC) |
| Reverse recovery time | 400 ns |
| Forward Current | 60000 mA |
| Maximum Forward Voltage (Max) | 2.5V @60A |
| Forward Current (Max) | 60 A |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
