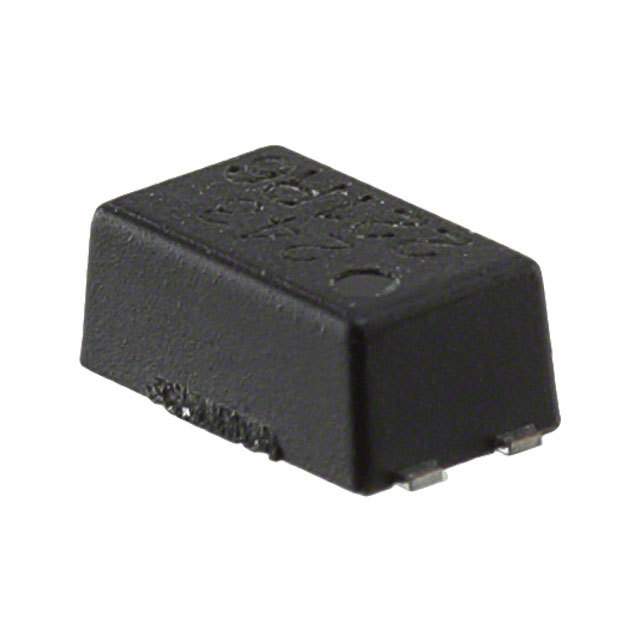

Image is for your reference only,please check specifications for details
- AQY221R6VY - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC13450142
-
Category:Solid State Relay
-
Package:SSOP-4
-
Datasheet:Datasheet 3D Model
-
Description:AQY Photomos Series 1A 30V 350mOhm SMT 1Channel Solid State Relay - SSOP-4
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Built-In Input Resistor for Less Man-Hours
- * The Voltage-Sensitive Type Eliminates the Need to Mount an External Input Resistor, Which Cuts Man-Hours for Mounting and Simplifies Board Designing
- * Space Saving on PC Board
- * The Small Package Size Including a Built-In Resistor Helps Space Savings When Designing Miniature Devices
AQY221R6VY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SSOP-4 |
| Output Voltage | 30 V |
| Output Current | 1 A |
| Contacts Type | SPST-NO |
| Load Current | 1 A |
| Input Current | 50 mA |
| Power Dissipation | 300 mW |
| Isolation Voltage | 1.5 kV |
| Forward Current | 5 mA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 30 V |
| Output Current (Max) | 1 A |
| Input Current (Min) | 50 mA |
| Load Current (Min) | 1000 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 300 mW |
| Input Voltage | 1.5 V |
| Show | |
| Size-Height | 1.8 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
