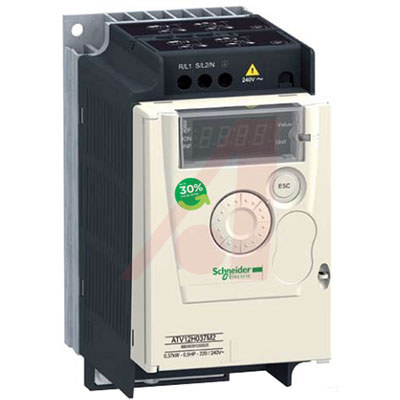

Image is for your reference only,please check specifications for details
- ATV12H075F1 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC100823533
-
Category:Motors, Drive
-
Datasheet:Datasheet 3D Model
-
Description:Variable Speed Drive, Altivar 12 Series, Single Phase, 750W, 100VAC to 120VAC
-
Stock Locations:
-
Availability:6 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 203.98
Updated at 29/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Altivar 12 Drive is a frequency inverter for 3-Phase 200...240 V asynchronous motors rated from 0.18 kW to 4 kW.
- Ease of installation, based on the principle of Plug&Play, its compact size, its integrated functions and its alternative base plate version make it particularly suitable for applications involving simple industrial machines and certain consumer machines.
- **Features:**
- * High Dynamic Performance on Acceleration as Well as on Braking
- * Reduced Noise and Maintenance: No Fan on Models up to 0.75 kW
- * Designed for Easy Fitting and Wiring of the Drive
- * Navigation Button for Easy Menu Access
- * 10-Year Service Life Under Normal Operating Conditions
- * Average of 30% Energy Savings (with Pump/Fan Control Profile) for the Majority of Applications
ATV12H075F1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Supply Voltage (DC) | 115V (max) |
| Current Rating | 4.2 A |
| Power Rating | 750 W |
| Output Voltage | ≤230 V |
| Output Current | 4.20 A |
| Output Voltage (Max) | 120 V |
| Voltage Rating | 115 V |
| Supply Voltage | 120 V |
| Supply Voltage (Max) | 120 VAC |
| Supply Voltage (Min) | 100 VAC |
| Show | |
| Size-Height | 130 mm |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
